Automatic door pocket slotting machine
Automatic door pocket slotting machine is a special machine used for making door pocket slot, it can process the slot one time, and meanwhile gluing it, no nailing. it is suitable for different materials like solid wood, MDF, particel board etc.
Advantage:
1. High Efficiency: Compared to manual slotting, the machine significantly increases production efficiency and reduces labor costs.
2. High Precision: The machine offers high processing precision, ensuring that the dimensions of the slots meet standards, thus reducing the need for subsequent adjustments.
3. User-Friendly Operation: Modern slotting machines are typically designed to be user-friendly, minimizing the skill level required of the operator.
| Main technical parameter |
| Model | MT8KC |
| Slotting 1 motor power | 5.5kw |
| Slotting 2 motor power | 5.5kw |
| Slotting 3 motor power | 5.5kw |
| Slotting 4 motor power | 5.5kw |
| Slotting 5 motor power | 3kw |
| Slotting 6 motor power | 4kw |
| Slotting 7 motor power | 4kw |
| Slotting 8 motor power | 3kw |
| Feeding motor power | 2.2kw |
| Lifting motor power | 0.37kw |
| Working voltage | AC380V 50HZ, 3PH |
| Overall size | 5600x1000x1600mm |
| Feeding speed | 14-20m/min |
| Panel thickness | 10-60mm |
| Max. slotting depth | 6mm |
| Panel width | ≥60mm |
| Working air pressure | 0.6mpa |
| Weight | 2200kg |
| Package | Wooden case |
Automatic door pocket slotting machine details:
 |  |  |
| Touchscreen | Water oil separator | Pure copper motor |
 |  |  |

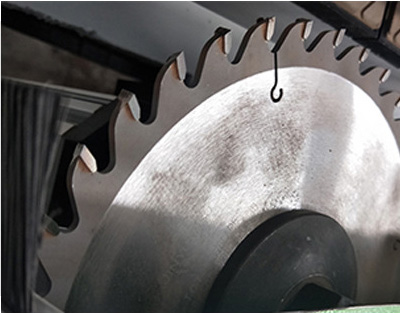

| copper motor for cutting | vertical slotting saw blade | horizontal slotting saw blade |
Package and shipping:
We will take care of your machinery packages well like picture show.
Our workers will make sure your machine clean before package.
We will add stretchy film for the whole machine and spare parts for delicate protection.
We will make export standard strong Wooden box case package as your request.
Guarantee:
The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem ,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.
Technical support:
Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
After sales services:
Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine.
If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is still have any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.
